Heavy quality screw in anchors post anchor piles for solar panels
- Color:
-
Silver
- Finish:
-
Bright(Uncoated)
- System of Measurement:
-
Metric
- Place of Origin:
-
Hebei, China
- Brand Name:
-
JS
- Model Number:
-
Jinshi29
- Material:
-
Steel
- Diameter:
-
5/16IN, 12mm
- Capacity:
-
980Mpa
- Standard:
-
DIN
- Product name:
-
Heavy duty screw in anchors post anchor
- Application:
-
screw in ground for solar power system
- length:
-
650mm-1600mm
- thickness:
-
3mm 4mm
- wire diameter:
-
60mm 76mm 90mm
- Surface treatment:
-
Hot Dip Galvanized
- Raw Material:
-
Q195 Carbon Steel
- 5000 Piece/Pieces per Week
- Packaging Details
- Heavy duty screw in anchors post anchor200pc/pallet then wrapped with plastic film
- Port
- xingang
- Lead Time :
-
Quantity(Pieces) 1 – 500 >500 Est. Time(days) 15 To be negotiated

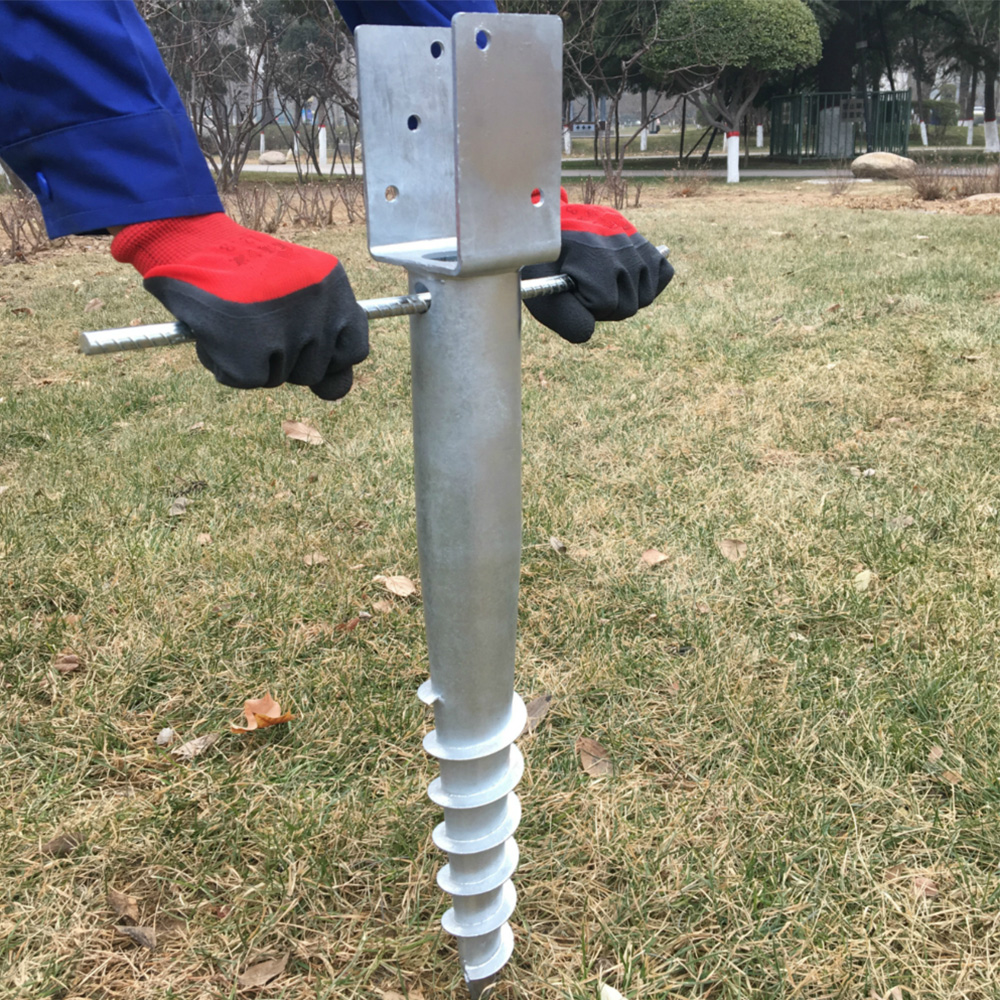

Heavy duty screw in anchors post anchor
|

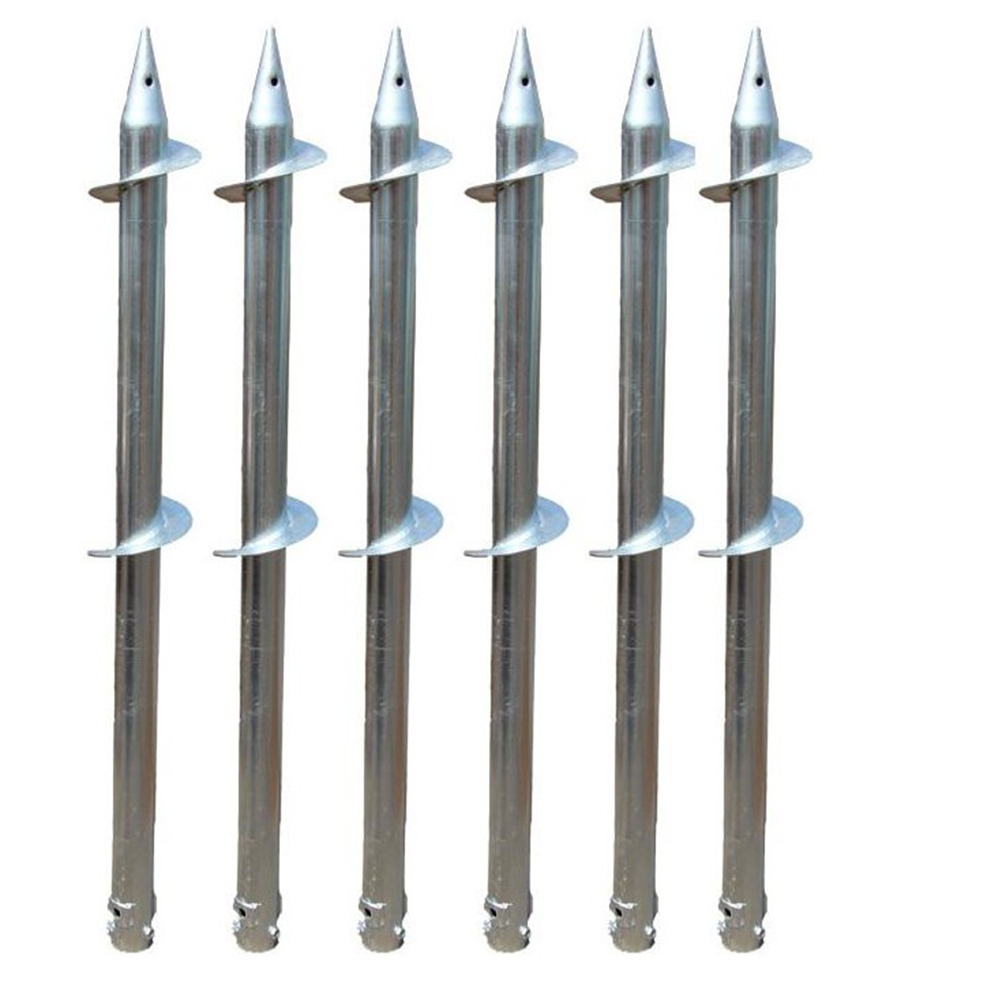

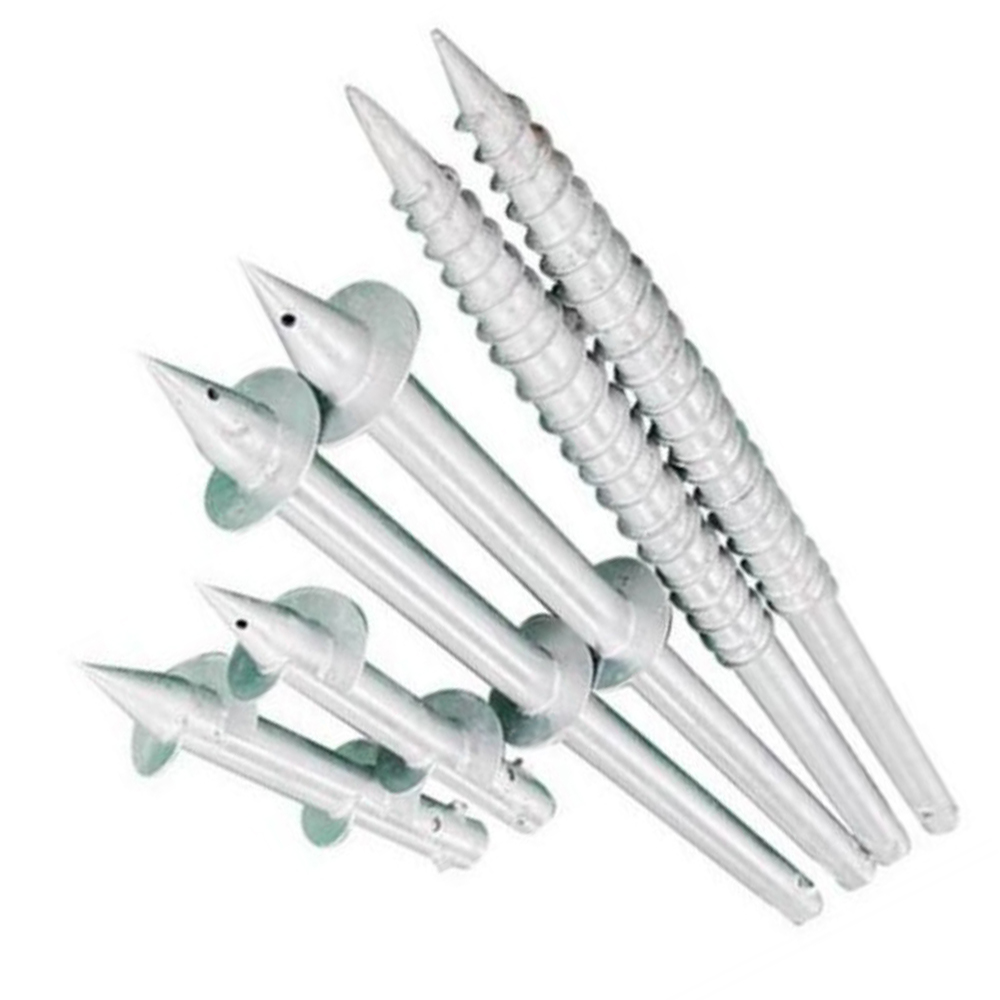

Screw in ground anchor
|
Hot dipped galvanized
|
|
material
|
steel ISO630 Fe A / DIN EN10025 Fe 360 B
|
|
tube thickness
|
3mm 4mm
|
|
post length
|
650mm-1600mm
|
|
base dia
|
60mm 76mm 90mm 114mm
|
|
flange
|
round, square, hexagonal, triangle etc.
|

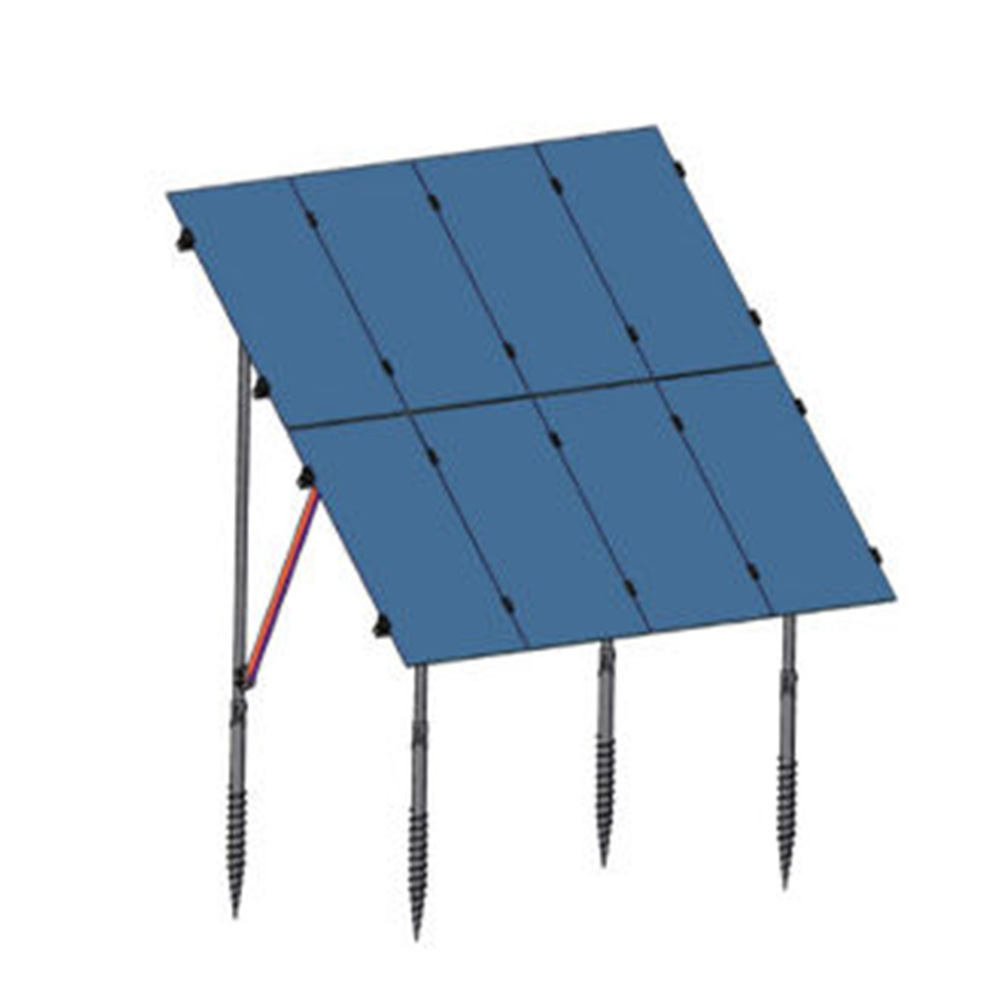

Screw in ground anchor is a concrete free ground foundation, which is quicker, more efficient, sustainable and value for money compared to concrete foundations. It’s a proven technology as ground mounting system for solar PV and housing, also it’s gradually applied in highway roads,construction fields etc.
The screw in ground anchor features:
* No dig, No concrete pouring, wet trades, or landfill requirements.
* Anti-rust, corrosion resistent so that it can be used for a very long time and makes it effective.
* Significant reduction in installation time compared to concrete foundation
* Safe and easy – speed and ease of installation, removal, and relocation – with minimum impact to the landscape.
* Consistent and reliable foundation performance

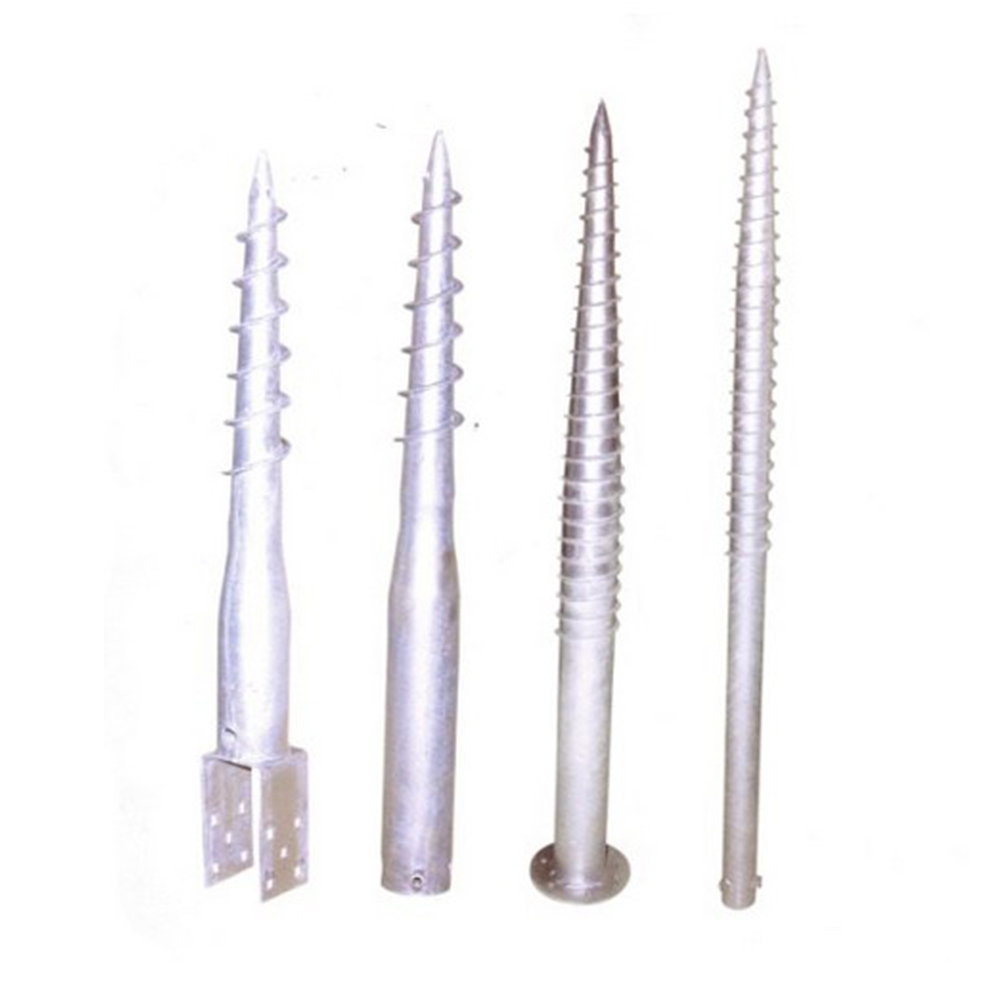

* Different ground screw heads to accommodate various post form.
* Reduced vibration and noise during installation.
* Ground screw made from fine carbon steel, and full welding on the connecting part.
Advantages
- Grasp the earth more firmly
- Strong and durable
- Cost effectively
- Saving time: no digging and no concrete
- Easy and fast to install
- Long life time
- Environment friendly: no damage to surrounding area
- Reusable: fast and inexpensive to relocate
- Corrosion resistant, etc
1. Can you offer free sample?
Hebei Jinshi can offer you high quality free sample
2. Are you a manufacturer?
Yes, we have been in providing the professional products in fence field for 10 years.
3. Can I customize the products?
Yes, as long as provide specifications, drawings can only do what you want products.
4.How about the delivery time?
Usually within 15-20 days , customized order may need longer time.
5. How about the payment terms?
T/T (with 30% deposit), L/C at sight. Western Union.
Any questions, please feel free to contact us. We will reply to you within 8 hours. Thank you!
