Galvanized Military BTO-22 Prison Fencing Wire Cross Concertina Razor Barbed Wire

Short Description:

Hebei Jinshi Industrial Metal Co., Ltd. is a professional manufacturer of concertina wire and razor wire. Since its foundation in 2000, our company has been focus on satisfying customers' requirements. We constantly modify our products and develop new models to keep up with the market.


  • sns01
  • sns02
  • sns03
  • sns04

Product Detail

FAQ

Product Tags

Hebei Jinshi Industrial Metal Co., Ltd. is a professional manufacturer of concertina wire and razor wire. Since its foundation in 2000, our company has been focus on satisfying customers' requirements. We constantly modify our products and develop new models to keep up with the market.

Although concertina wire and razor wire are very common today, some are confused. FAQs are designed to help you know concertina wire better.

What types of concertina wire do you supply?

According to materials, galvanized, PVC coated and stainless steel wires are provided. All of them can resist rust and keep sharp blades which threaten anyone who want to break into,professional razor wire exporter.

According to diameter of coil, concertina wire and razor wire are provided. In fact, both of them share similar appearance and applications. However, concertina wire is often supplied in coils and has larger diameter. Single or double coil concertina wire and spiral concertina wire are include.

In addition, mobile security barrier is also provided. It can be installed within 5 minutes and is ideal for emergency conditions.

concertina wire supplier
concertina wire distributor

Concertina Wire Materials:



Blade steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding Wire: hot dipped galvanized metal wire hot dipped galvanized steel wire or stainless steel wire,barbed razor wire manufacturer

Surface Treatment:



China concertina wire

Hot dip galvanized

wholesale barbed wire

PVC painting

Usual Specifications:

Concertina wire or Dannert Wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control.

Model Thickness Wire Diameter Length Width Spacing
BTO-10 0.5±0.05mm 2.5±0.1mm 12±1mm 13mm 26mm
BTO-12 0.5±0.05mm 2.5±0.1mm 12±1mm 15mm 26mm
BTO-18 0.5±0.05mm 2.5±0.1mm 18±1mm 15mm 33mm
BTO-22 0.5±0.05mm 2.5±0.1mm 22±1mm 15mm 34mm
BTO-28 0.5±0.05mm 2.5±0.1mm 28±1mm 15mm 34mm
BTO-30 0.5±0.05mm 2.5±0.1mm 30±1mm 18mm 34mm
CBT-60 0.6±0.05mm 2.5±0.1mm 60±1mm 32mm 96mm
CBT-65 0.6±0.05mm 2.5±0.1mm 65±1mm 21mm 100mm



Outside Diameter No. of Loops Standard Length per Coil Razor Type Notes
450mm 33 7M-8M CBT-60, 65 Single Coil
500mm 56 12M-13M CBT-60, 65 Single Coil
700mm 56 13M-14M CBT-60, 65 Single Coil
960mm 56 14M-15M CBT-60, 65 Single Coil
450mm 56 8M-9M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
500mm 56 9M-10M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 10M-11M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 8M-10M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
700mm 56 10M-12M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
800mm 56 11M-13M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
900mm 56 12M-14M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
960mm 56 13M-15M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
980mm 56 14M-16M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type

Concertina Wire Type:

concertina razor barbed wire

Single Concertina Wire Coil

barbed razor wire exporter

Cross Concertina Wire Coil

concertina wire exporter

Concertina Wire Tape

barbed wire factory

Welded Concertina Wire Fence

Concertina Wire USE:



concertina wire manufacturer
razor wire price
barbed wire distributor
razor barbed wire supplier
Packing & Delivery:



1. compression rolls, 5rolls, 10rolls, or more rolls as one bundle

2. water-proof paper inside with woven bag outside

3. 1roll, 3rolls or 5rolls in one carton

4. as customer request

Hot sale products

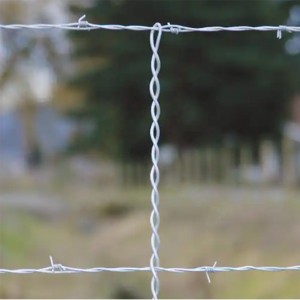

Barbed Wire Fence Stays

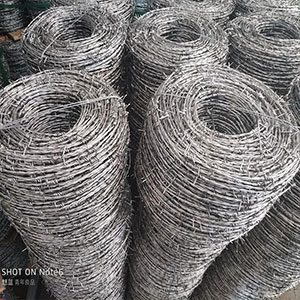

Barbed Wire

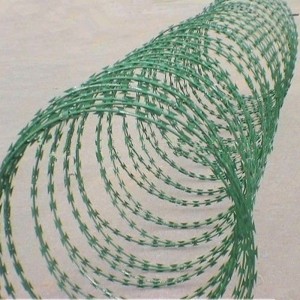

PVC Coating Razor Barbed Wire

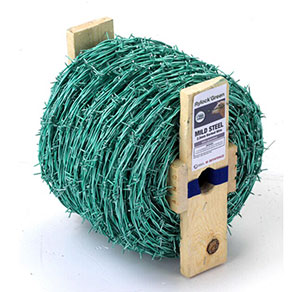

PVC Coated Barbed Wire


  • Previous:
  • Next:

  • 1. Can you offer free sample?
    Hebei Jinshi can offer you high quality free sample
    2. Are you a manufacturer?
    Yes, we have been in providing the professional products in fence field for 10 years.
    3. Can I customize the products?
    Yes, as long as provide specifications, drawings can only do what you want products.
    4.How about the delivery time?
    Usually within 15-20 days , customized order may need longer time.
    5. How about the payment terms?
    T/T (with 30% deposit), L/C at sight. Western Union.
    Any questions, please feel free to contact us. We will reply to you within 8 hours. Thank you!
